3-D Representations Of Large Punching Press

3D design models can also provide clarity in technical documents, such as operating instructions, application areas, and functionality of a machine or system.

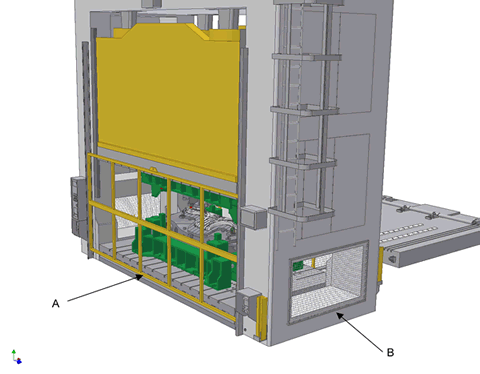

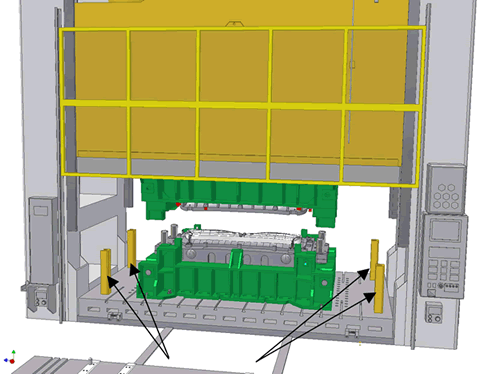

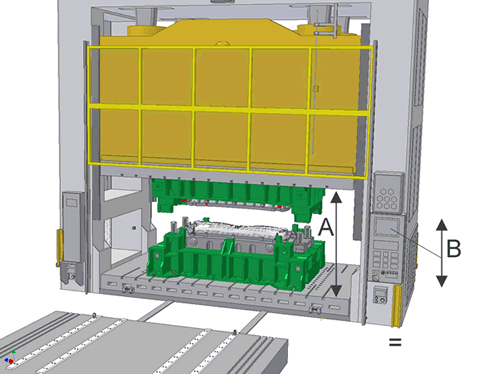

The illustrations show various situations on a large punching press.

Modell: Press unit
Unigraphics NX 3

Grafic Format
WMF converted
File Size 18KB
