3-D Representations in Character Mode

3D representations are easy to integrate in paper documentation, and increase clarity relative to 2D representations. When 3D design data are used consistently in the Technical Documentation , the costs of creating it can be significantly reduced.

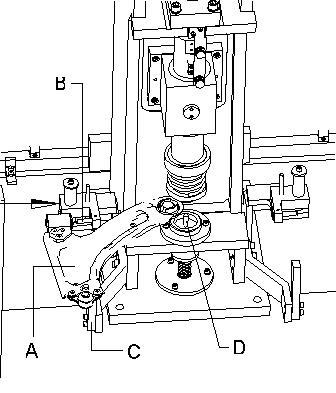

The two illustrations show insertion press fixtures.

The data were generated in Autodesk Mechanical, and then edited slightly in a graphics program in WMF format.

Modell: Press unit
Unigraphics NX 3

Grafic Format
WMF converted
File Size 18KB
